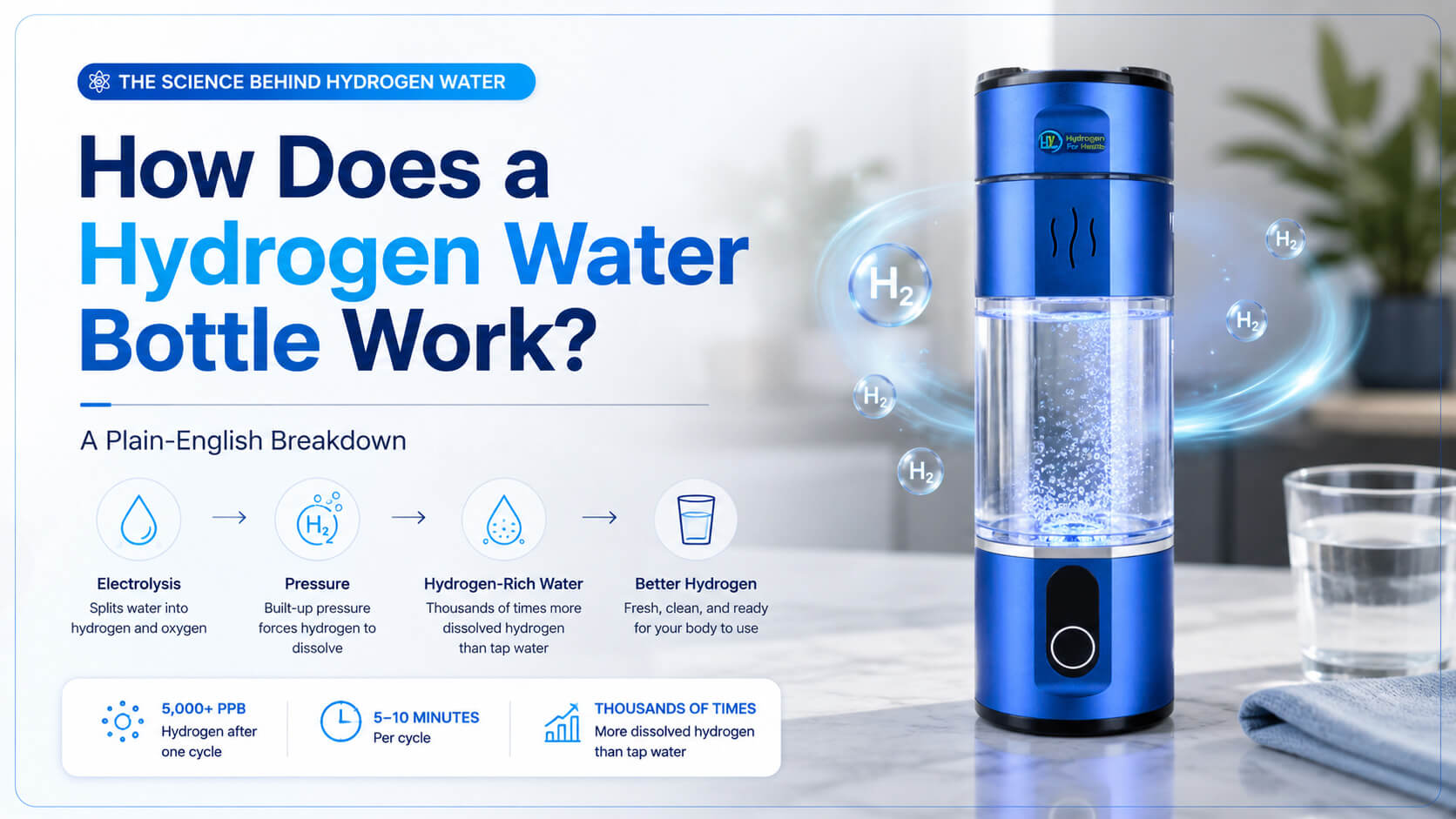

How Does a Hydrogen Water Bottle Actually Work?
A hydrogen water bottle relies on two things: electrolysis and pressure. First, an electric current runs through a Proton Exchange Membrane (PEM) and a pair of electrodes, splitting water into hydrogen gas and oxygen gas. Then comes the part most explanations skip entirely: the bottle uses internal pressure to force that hydrogen, a notoriously stubborn gas, to actually dissolve into the water. Skip the pressure step, and the hydrogen just escapes into the air. Get it right, and a 5-to-10-minute cycle can push dissolved hydrogen concentration to levels thousands of times higher than tap water.
Part 1: Electrolysis, Splitting the Water Apart
When you press the button, a small electrical current passes between two electrodes sitting in the water. Those current forces water molecules apart into their two base components.
2H₂O + electrical energy → 2H₂ (hydrogen gas) + O₂ (oxygen gas)
Hydrogen collects at one electrode, oxygen at the other. This is where the PEM membrane does its job. It sits directly between the two electrodes, acting as a physical gate: hydrogen passes through to your drinking water, oxygen (along with any trace chlorine or ozone) gets routed out through a separate vent at the base. None of this is exotic science. It's the same basic reaction used in industrial hydrogen production and fuel-cell research, just scaled down to fit in a bottle.
Part 2: The Pressure Step Nobody Talks About
Here's the detail most explanations leave out entirely: hydrogen does not want to dissolve in water. At normal atmospheric pressure, water can barely hold any of it. Generate hydrogen gas in an open container and most of it just bubbles away into the air.
To get around this, the bottle seals the chamber completely. As electrolysis runs, hydrogen gas builds up inside that sealed space, and pressure rises well above normal atmospheric levels. That pressure is what physically forces hydrogen molecules to stay dissolved in the water instead of escaping.
This comes down to a real principle of chemistry called Henry's Law: the more pressure applied to a gas sitting above a liquid, the more of that gas the liquid is forced to absorb. It's the same reason a sealed soda bottle stays fizzy while an open one goes flat within a day. The moment you unscrew the cap and release that pressure, the clock starts. That's why hydrogen water is meant to be consumed soon after it's made, not left sitting around.
What the pressure step actually does:
| Hydrogen in tap water | Effectively zero |
| Hydrogen after one cycle | 5,000+ PPB (5+ PPM) |
| Cycle time | 5 to 10 minutes |
| Result | Thousands of times more dissolved hydrogen than tap water |
Part 3: What's Actually Inside the Bottle
Four components work together to make electrolysis and pressurization possible.
Electrodes
Titanium, platinum-coated. Platinum resists corrosion from repeated electrolysis cycles, which is why cheaper bottles that skip it tend to degrade faster.
PEM / SPE Membrane
The Proton Exchange Membrane is the thin barrier separating hydrogen from oxygen during the reaction. SPE, Solid Polymer Electrolyte, refers to the membrane material itself. In our bottles that's a platinum-coated ion exchange membrane paired with titanium electrodes. This is the single most expensive part to engineer well, and it's also the part that determines how much hydrogen actually ends up in your water versus how much gets wasted or contaminated with byproducts.
Sealed Pressure Chamber
Keeps the bottle airtight during the cycle so pressure can build. If the lid isn't fully sealed, hydrogen escapes before it has a chance to dissolve, which is why a loose cap is the most common reason a bottle underperforms.
Rechargeable Battery
Powers the electrolysis reaction. Charging time and cycle count per charge vary by device.
Why Water Type Matters (Tap, Filtered, Distilled, Mineral)
This is a direct extension of the electrode question above, and it comes down to a measurable factor: total dissolved solids, or TDS.
- Tap and mineral water carry dissolved minerals, calcium, magnesium, and other ions that register as TDS. During electrolysis, these minerals can plate onto the electrode surfaces over repeated use, a process called scaling or fouling.
- Electrode fouling reduces the surface area available for the reaction. It's the same failure mode seen in other electrolysis-based equipment, from industrial water treatment systems to CPAP humidifiers. Mineral buildup on a charged surface is a well-documented cause of declining output over time.
- This is why some hydrogen generators specify distilled water only. Zero TDS means nothing builds up on the electrodes, so the manufacturer doesn't have to engineer around the problem.
- Our PEM dual-chamber system is built to run on tap, filtered, RO, distilled, or mineral water without that restriction, because the membrane and electrode design account for mineral content directly.
- Regardless of which device you own, periodic descaling (we recommend a citric acid rinse every 1 to 3 months) is what protects long-term hydrogen output, since even mineral-tolerant systems accumulate some buildup eventually.
What PPB and PPM Actually Mean
Every hydrogen water bottle on the market advertises a number, usually something like 5000 PPB or 5 PPM. PPB stands for parts per billion, PPM for parts per million, and the conversion is simple: 1 PPM equals 1,000 PPB. So 5000 PPB and 5 PPM describe the exact same concentration, just in different units. Manufacturers pick whichever number looks bigger.
Concentration matters because molecular hydrogen is believed to act as a selective antioxidant: the more dissolved H2 in the water, the more is available for your body to use before it off-gasses. And like the carbonation analogy above, that concentration isn't permanent. Freshly infused hydrogen water is meaningfully different from water that's been sitting for hours.
Is This Safe?
There are no open flame and no combustion involved. This is a low-voltage electrolysis reaction, not something volatile. Byproducts (oxygen, trace chlorine, ozone) are deliberately vented out through a separate port rather than left to accumulate in your drinking water. The entire design is built around isolating one gas and keeping everything else out of what you're consuming.
Frequently Asked Questions
Why doesn't hydrogen just naturally dissolve in water?
Hydrogen is a very light gas that water resists absorbing at normal air pressure. Getting meaningful amounts to dissolve requires force, the same reason a soda bottle stays carbonated while sealed and goes flat once opened.
Why do I need to screw the lid on tightly before starting a cycle?
If the lid isn't fully sealed, hydrogen gas escapes as it's generated instead of building the internal pressure needed to force it into solution. A loose cap is the single most common reason a cycle underperforms.
Can I use hot water to make hydrogen water?
No. Heat damages the PEM membrane over time, and gases dissolve less effectively in hot liquids than cold ones. Room temperature to cool water gives the highest dissolved hydrogen concentration.
Does the type of water change how the bottle works?
Yes, though it depends on the specific device. Electrolysis requires some electrical conductivity to split the molecules, and mineral content in tap or mineral water can gradually coat the electrodes on systems not engineered to handle it. See the water type section above for the full explanation.
How is this different from a regular water filter?
A filter removes things from water: sediment, chlorine, contaminants. A hydrogen water bottle does the opposite. It actively adds dissolved hydrogen gas through a chemical reaction, not filtration. They solve entirely different problems.
Conclusion:
A hydrogen water bottle works through two principles stacked on top of each other: electrolysis and pressure. The electrodes and PEM membrane split water into pure hydrogen gas. The sealed chamber then traps that gas under pressure, forcing the stubborn hydrogen molecules to actually stay dissolved in the liquid. Skip the electrolysis and there's no hydrogen to begin with. Skip the pressure, and none of it ends up in the water you drink.
Our H2 Nano runs on exactly this system, independently tested to meet EPA drinking water standards. Whether or not you end up buying one, we're glad you took the time to understand what's actually happening inside the device.
Written by the Hydrogen4Health engineering team. We've spent 16 years building these devices, and this is the same explanation we'd give a customer standing in our lab.
